E-KR3065 | Frolyt

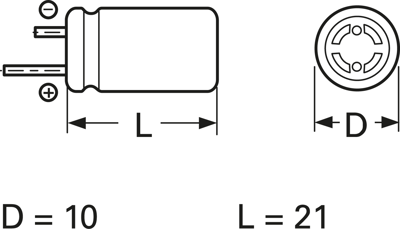

Electrolytic capacitor, 220 µF, 25 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KR3065
Unit Price (€ / pc.)
1.3566 € *
Available: 164 pcs.
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
10 pcs.
0.8449 €
50 pcs.
0.7497 €
250 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 25 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| Grid | 5 mm | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 650 mΩ | |
| Tolerance | -10/+50 % | |
| Length | 21 mm | |
| Design | radial | |
| Capacity | 220 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
