E-KR3056 | Frolyt
Electrolytic capacitor, 100 µF, 40 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KR3056
Unit Price (€ / pc.)
1.2019 € *
Available: 2,373 pcs.
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
0.7497 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale

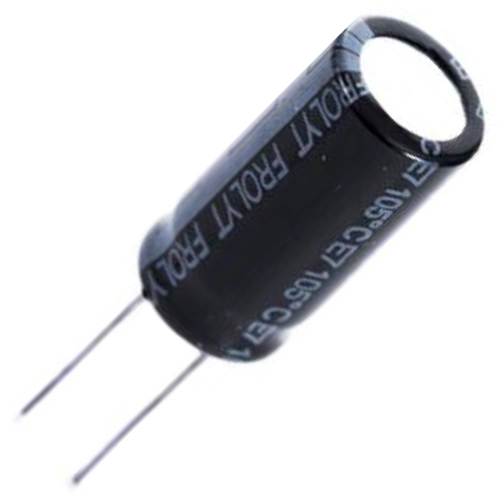

Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 40 VDC.

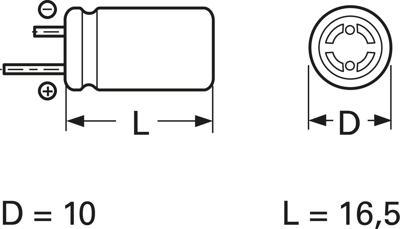

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 1.27 Ω | |
| Rated voltage (DC) | 40 V | |
| max. operating temperature | 105 °C | |
| Tolerance | -10/+50 % | |
| Length | 16.5 mm | |
| Capacity | 100 µF | |
| min. operating temperature | -40 °C | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
