E-KR3049 | Frolyt

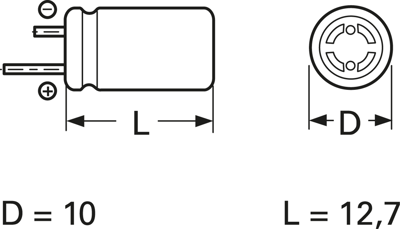

Electrolytic capacitor, 100 µF, 25 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KR3049
Unit Price (€ / pc.)
0.8568 € *
Available: 1,306 pcs.
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.5355 €
50 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 25 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 25 V | |
| Tolerance | -10/+50 % | |
| Design | radial | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 1.43 Ω | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Length | 12.7 mm | |
| Capacity | 100 µF | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
