E-KR3018 | Frolyt
Electrolytic capacitor, 47 µF, 40 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KR3018
Unit Price (€ / pc.)
0.6545 € *
Available: 1,636 pcs.
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
25 pcs.
0.4998 €
100 pcs.
0.4165 €
250 pcs.
0.3451 €
1000 pcs.
0.3070 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 40 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 40 V | |

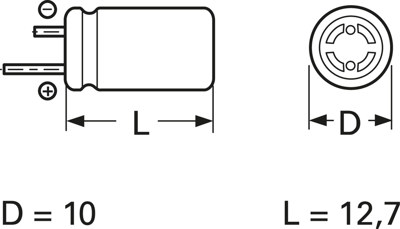

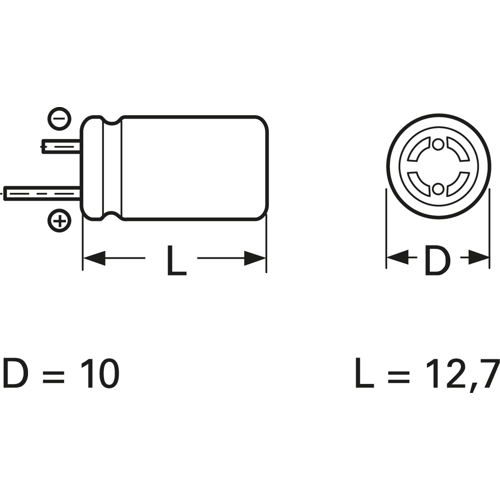

| Length | 12.7 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| diameter | 10 mm | |
| Version | polar | |
| Capacity | 47 µF | |
| Tolerance | -10/+50 % | |
| Grid | 5 mm | |
| ESR (Equivalent Series Resistance) | 2.71 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
