E-KR3016 | Frolyt
Electrolytic capacitor, 22 µF, 63 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KR3016
Unit Price (€ / pc.)
0.8568 € *
Available: 2,586 pcs.
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.5355 €
50 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 63 VDC.

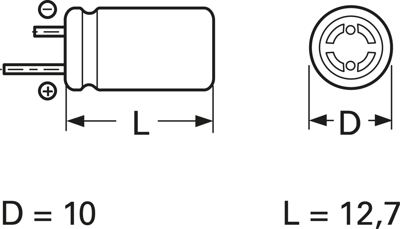

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| Version | polar | |
| diameter | 10 mm | |
| Rated voltage (DC) | 63 V | |
| Tolerance | -10/+50 % | |
| Capacity | 22 µF | |
| ESR (Equivalent Series Resistance) | 4.34 Ω | |
| Design | radial | |
| Length | 12.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
