E-KR3010 | Frolyt
Electrolytic capacitor, 47 µF, 25 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 8.7 mm, E-KR3010
Unit Price (€ / pc.)
0.6307 € *
Available: 1,375 pcs.
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
25 pcs.
0.4998 €
100 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 25 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| Grid | 5 mm | |

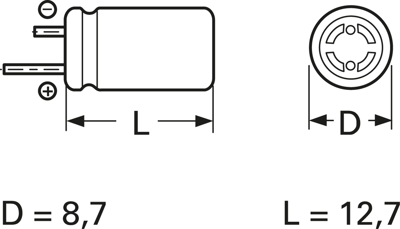

| diameter | 8.7 mm | |
| ESR (Equivalent Series Resistance) | 3.05 Ω | |
| Tolerance | -10/+50 % | |
| Length | 12.7 mm | |
| Design | radial | |
| Capacity | 47 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
