E-KR3008 | Frolyt

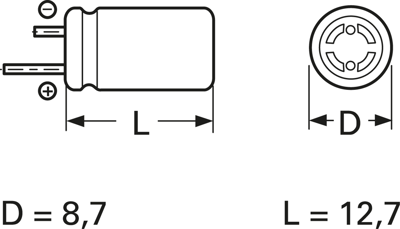

Electrolytic capacitor, 22 µF, 40 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 8.7 mm, E-KR3008
Unit Price (€ / pc.)
0.6307 € *
Available: 2,597 pcs.
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
25 pcs.
0.5117 €
100 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 40 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| diameter | 8.7 mm | |
| ESR (Equivalent Series Resistance) | 5.79 Ω | |
| Rated voltage (DC) | 40 V | |
| max. operating temperature | 105 °C | |
| Tolerance | -10/+50 % | |
| Length | 12.7 mm | |
| Capacity | 22 µF | |
| min. operating temperature | -40 °C | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
