E-KM3209 | Frolyt

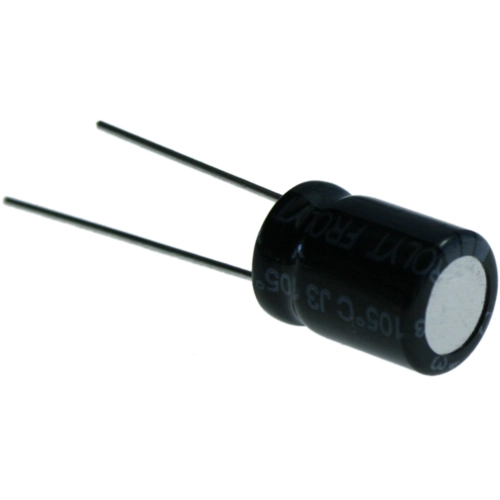

Electrolytic capacitor, 100 µF, 50 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KM3209
Unit Price (€ / pc.)
1.2019 € *
Available: 2,140 pcs.
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
0.7497 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKM.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 50 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ESR (Equivalent Series Resistance) | 1.6 Ω | |
| min. operating temperature | -40 °C | |
| Capacity | 100 µF | |
| max. operating temperature | 105 °C | |
| Version | polar | |
| Rated voltage (DC) | 50 V | |
| Grid | 5 mm | |
| Tolerance | -10/+50 % | |
| diameter | 10 mm | |
| Length | 16.5 mm | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 600 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
