T6-1000 KIT | Fluke
Fluke electrical tester kit, T6-1000 KIT, 5003409
Order No.: 27K0701
EAN: 4099891459284
MPN:
T6-1000 KIT
5003409
This item is no longer available.
As an alternative, we recommend the following item:
Electrical Tester set, 5003409, Fluke

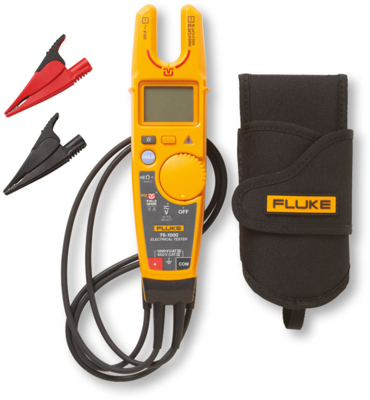

The Fluke T6-1000 Electrical Tester with FieldSense™ technology lets you quickly, safely take True rms voltage and current measurements without test leads. Unlike other fork testers that merely detect voltage, the T6-1000 makes actual measurements, without contacting a live, metallic conductor. Just slide the 17.8 mm open fork, the widest in the industry, over a conductor and read simultaneous voltage and current values. Or simultaneous frequency and current values. The open fork works with wires up to AWG 4/0 (120 mm2). Or, you can use the attached test leads to measure voltage DC to 1000 V.
Features
- Measure voltage to 1000 V AC without test leads
- Simultaneously measure voltage and current
- 17.8 mm open fork is widest in the industry
- Measure up to 200 A on 4/0 wires (120 mm2)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (AC) | 1000 V | |
| Continuity test | 1 Ω-10 kΩ | |
| max. voltage measuring range (DC) | 1000 V | |
| Degree of protection (IP) | IP40 | |
| Rated category | CAT III, CAT IV | |
| Version | electrical tester kit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303370 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
