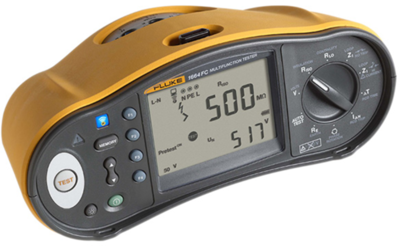

FLUKE 1664FC SCH | Fluke
Installation tester FLUKE 1664FC SCH, CAT III 500 V, CAT IV 300 V, 20 MΩ to 1 GΩ, 500 V (DC), 500 V (AC)
This item is no longer available.
As an alternative, we recommend the following item:
Installation tester kit 1664FC SCH FTT KIT, CAT III 500 V, CAT IV 300 V, 20 to 1000 MΩ, 500 V (AC)
Order No.: 27K0900
Manufacturer: Fluke
per pc. 2,462.0386 € *
Installation tester, 4547054, Fluke
The Fluke 1664 FC installation tester is the only meter of its kind with "insulation pre-testing." If the tester detects that a device is connected to the system under test, it stops the insulation test, helping to prevent accidental damage. The 1664 FC tester also features Fluke Connect ® so you can send test results to your smartphone and collaborate with others. Auto Test performs seven test steps at the touch of a single button, reducing the number of manual connections and decreasing the likelihood of making mistakes.
Features
- Autotest lets you perform line and loop impedance, RCD trip current and trip time, and insulation tests with a single connection and a single button press
- Additional mode with high test current for loop impedance measurement. Faster output of measurement results compared to loop impedance measurement without tripping the residual current devices (RCDs).
- Z-max memory for loop testing - easy evaluation of the highest reading during loop testing.
Technical specifications
| Batteries | AA | |
| Product type | Installationstester | |
| Degree of protection (IP) | IP40 | |
| Surge voltage category | CAT III 500 V, CAT IV 300 V | |
| Insulation resistance Max | 1 Ω | |
| Insulation resistance Min | 20 MΩ | |
| Max measured value DC voltage | 500 V | |
| Max measured value AC voltage | 500 V |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
