FLUKE 1662 | Fluke
Installation tester, with phase sequence display, CAT III 500 V, CAT IV 300 V, Fluke FLUKE 1662

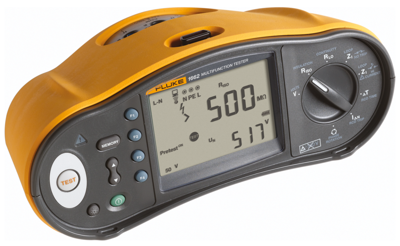

Fluke 1662 Multifunction Installation Tester delivers solid, basic installation testing fea-tures
The Fluke 1662 installation tester gives you Fluke reliability and all the basic testing power you need for day-in, day-out installation testing. It tests to all local regulations and is easy and intuitive to use. Additional helpful features like the On/Off switchable auto-start for RCD and loop test, and self-test save time and give you more confidence in your results.
Measures RCD switching time and tripping level (ramp test)
Measures trip time and current for RCD type A & AC in one test
Measures RCD variable current
Provides automatic RCD test sequence
Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
Includes a phase sequence indicator
| Filter | Property | Value |
|---|---|---|
| Product type | installation tester | |
| Version | with phase sequence display | |
| Surge voltage category | CAT III 500 V, CAT IV 300 V | |
| Insulation resistance Min | 20 MΩ | |
| Insulation resistance Max | 1 Ω | |
| Max measured value DC voltage | 500 V | |
| Max measured value AC voltage | 500 V | |
| Degree of protection (IP) | IP40 | |
| Batteries | AA |
| Property | Value |
|---|---|
| Country of origin | GB |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
