FLUKE-1537 | Fluke

Insulation tester, LCD display, CAT IV 600 V, Fluke FLUKE-1537

Order No.: 27K3104
EAN: 0195112122433
MPN:
FLUKE-1537
5592405
Series: Fluke 1530

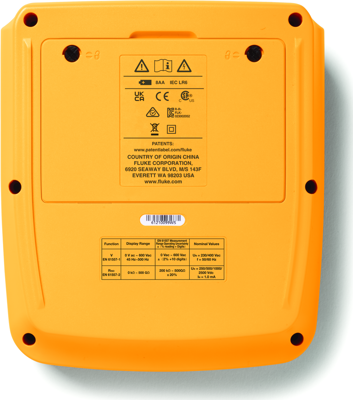

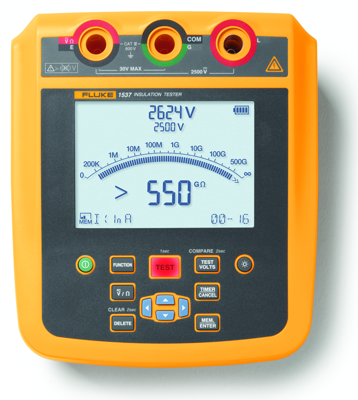

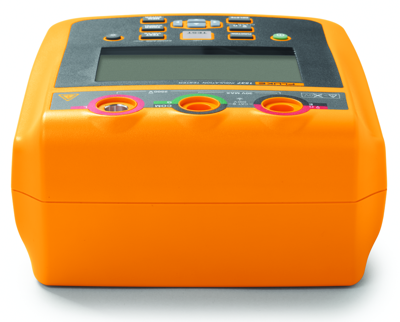

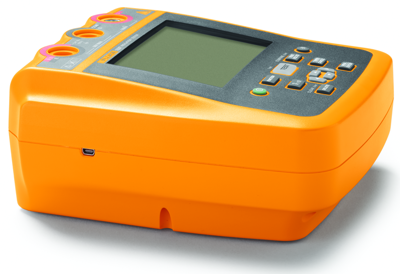

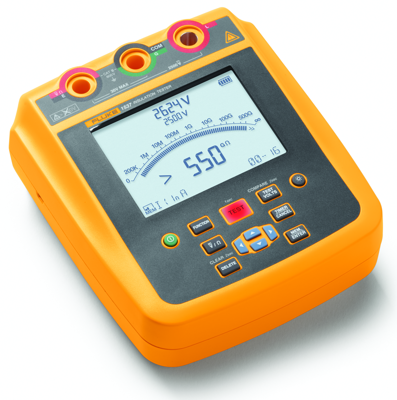

FLUKE-1537 Fluke VDE testers, Installation testers, Insulation testers Image 1
FLUKE-1537 Fluke VDE testers, Installation testers, Insulation testers Image 2
FLUKE-1537 Fluke VDE testers, Installation testers, Insulation testers Image 3
FLUKE-1537 Fluke VDE testers, Installation testers, Insulation testers Image 4
FLUKE-1537 Fluke VDE testers, Installation testers, Insulation testers Image 5
Image may differ
Unit Price (€ / pc.)
2,473.9505 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,473.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2,473.9505 €

Insulation resistance tester, FLUKE-1537, Fluke

The insulation resistance tester is engineered to simplify frontline troubleshooting whether you’re on the factory floor or working in the field at a solar installation. With user selectable test voltages from 250 V to 2500 V and resistance measurements up to 500 GΩ this tester allows you to cover more workload with a single tool. Equipped with an intuitive user interface, a short circuit current of up to 5 mA and a CAT IV 600 V rating this portable high-voltage insulation testers can deliver rapid and stable resistance measurements no matter where you take them. The 1537 Insulation Resistance Tester also allows you to store measurements for later review or PC transfer, using the provided software.

Technical specifications
Version LCD display
Insulation resistance Min 200 kΩ
Degree of protection (IP) IP40
Batteries AA
Max measured value AC voltage 600 V
Max measured value DC voltage 600 V
Insulation resistance Max 50 Ω
Product type insulation tester
Surge voltage category CAT IV 600 V
Logistics
Country of origin CN
Customs tariff number 90303200
Compliance
RoHS conform Yes
SVHC free Yes
