FLUKE 80K-40 | Fluke

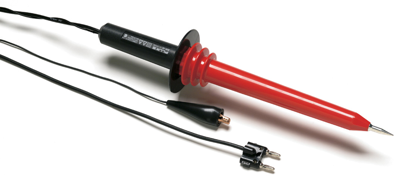

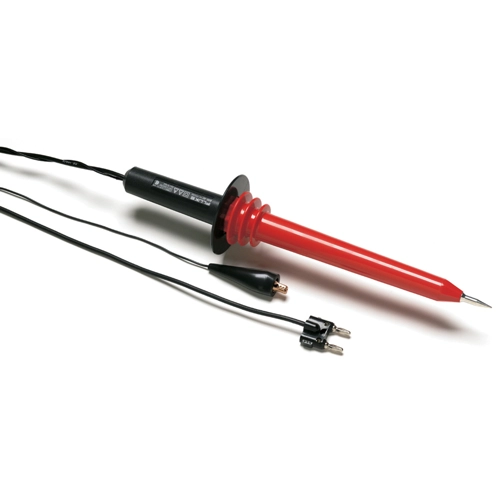

High-voltage probe head, 1 kV, black/red, FLUKE 80K-40
Unit Price (€ / pc.)
483.7707 € *
Standard delivery time from the manufacturer is: 2 Weeks
High Voltage Probe, 382846, Fluke
The 80K-40 is a high voltage probe designed to extend the voltage measuring capability of an AC/DC voltmeter to 40,000 volts peak AC or DC Overvoltage Category I. This means the probe can only be used to make measurements on energy limited circuits within equipment. Examples include high voltage within televisions or photo copy machines. DO NOT use this probe to measure high voltages on power distribution systems. The probe provides high accuracy when used with a voltmeter having 10 Megohm input impedance.
Features
- A high voltage probe that allows a multimeter to measure up to 40,000V respectively. Intended for low energy applications only
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PVC | |
| Colour | black/red | |
| Rated voltage | 1 kV | |
| Product type | high-voltage probe head | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
