Hydraulic test pump, 10000 psi/690 bar, FLUKE 700HTP-2
Unit Price (€ / pc.)
2,077.74 € *
Standard delivery time from the manufacturer is: 2 Weeks
Test pump, 4096855, Fluke

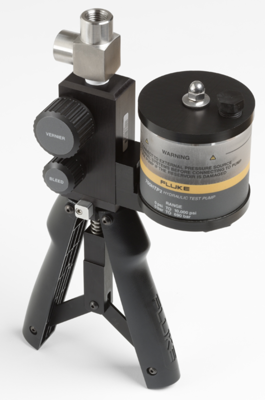

Fluke 700HTP-2 is a hand-operated hydraulic pressure pump for generating pressures up to 10,000 psi/690 bar for measurement and calibration. Designed for use with Fluke 700 Series high pressure modules, such as the Fluke-700P09, 700P29, 700P30 and 700P31.
Features
- Stroke adjustment allows user to vary volume and pressure per stroke
- Integrated pressure fine adjustment for fine pressure adjustment
- When testing and calibrating pressure instruments, both the pressure reference and the pressure instrument under test are connected directly to the pressure pump
- Two ¼" NPT pressure ports, one for reference (pressure module or gauge), one for pressure instrument under test
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | hydraulic test pump | |
| Version | 10000 psi/690 bar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 84142080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
