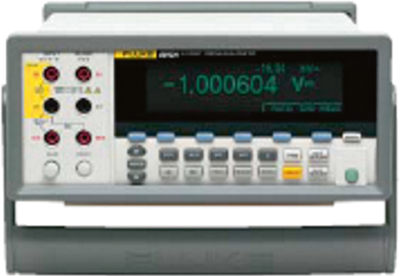

FLUKE 8845A | Fluke
TRMS digital bench multimeter FLUKE 8845A, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, CAT I 1000 V, CAT II 600 V
Digital multimeters, type Fluke 8845A.
Dual display, 6.5 digits, with RS-232, IEEE488 and Ethernet interface, 1000 measurements/s, paperless write function, continuity check, 2 x 4-wire resistance measurement; DC voltage: 100 mV to 1000 V, tolerance ±0.0035%. AC voltage: 100 mV to 750 V, tolerance ±0.06%. Resistance: 100 ohm to 100 Mohm, tolerance ±0.01%. DC current: 100 µA to 10 A, tolerance ±0.05%. AC current: 10 mA to 10 A, tolerance ±0.1%. Frequency: 3.0 Hz to 300 kHz, tolerance ±0.01%. Dimensions H 88, W 215, D 293 mm. Weight: 3.6 kg. Supplied with LCI power cord, set of TL 71 test leads, replacement fuse, programming/user manual (CD-ROM), FlukeView Forms software basic version.
Type: 8845A, digital multimeter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | digital bench multimeter | |
| TRMS possible | Yes | |
| max. measured current value (DC) | 10 A | |
| max. measured current value (AC) | 10 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 750 V | |
| max. resistance range | 100 MΩ | |
| Surge voltage category | CAT I 1000 V, CAT II 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 90303200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
