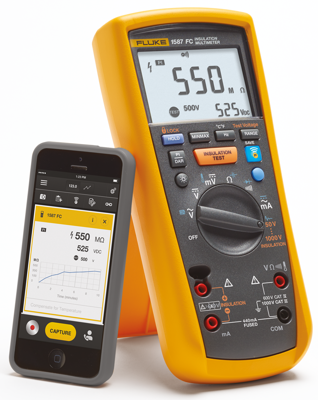

FLUKE 1587 FC | Fluke
TRMS isolation multimeter FLUKE 1587 FC, 400 mA(DC), 400 mA(AC), 1000 VDC, 1000 VAC, 1 nF to 9999 μF, CAT III 1000 V, CAT IV 600 V
Insulation multimeters, type Fluke 1587-FC.
Two-in-one meter. Fluke Connect compatible. TRMS measurement, memory function, temperature compensation and PI/DAR measurements with TrendIT graphic views via Fluke Connect App, low-pass filter for precise measurements on frequency converters for motor drives, MIN/MAX recording, automatic discharge, signal smoothing for insulation measurements, detection of live circuits, auto-off, large backlit display, input warning buzzer on incorrect connection, diode test, temperature measurement, continuity check; Measuring range: 0.01 to 2 Gohm. Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V. Test voltage tolerance: +20 %, - 0 %. Rated short-circuit test current: 1.0 mA. Discharge time: < 0.5 s. Capacitive load: max. 1.0 µF. DC and AC voltage: max. 1000 V. DC and AC current: max. 400 mA. Resistance: max. 50 Mohm. Capacitance: max. 9999 µF. Frequency: max. 99.99 kHz. Operating temperatures: –20 to +55 °C. Dimensions: H 203, W 100, D 50 mm. Weight: 550 g. Supplied with probe with trigger button, test leads, test probes, alligator clips, thermocouple type K, hard-shell case, user documentation.
Type: 1578-FC, insulation multimeter
| Filter | Property | Value |
|---|---|---|
| Version | digital multimeter | |
| TRMS possible | Yes | |
| max. measured current value (DC) | 400 mA | |
| max. measured current value (AC) | 400 mA | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 1000 V | |
| Capacity range | 1 nF to 9999 μF | |
| max. resistance range | 50 MΩ | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| Display Digits | 60000 |
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 90303100 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
