FLK 289/FVF/IR3000 | Fluke

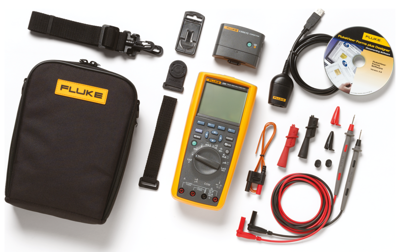

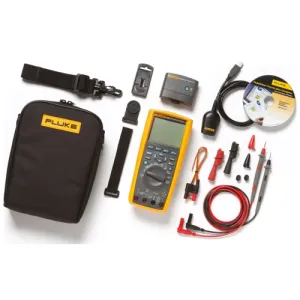

TRMS measuring device kit FLK 289/FVF/IR3000, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 100 mF
Unit Price (€ / pc.)
1,572.8111 € *
Available: 2 pcs.
Multimeter, 4699325, PeakTech
The new 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the new 289 be your watchdog for systems or processes while you are off solving other problems.
Features
- Large 50,000 count, 1/4 VGA dot matrix display with white backlight
- Save multiple logging sessions before pc download is necessary
- Real time clock for automatic time stamping of saved readings
Technical Data
- True-rms ac bandwidth: 100 kHz
- DC mV resolution: 1 µV
- Conductance: 50.00 nS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | digital multimeter | |
| max. measured current value (DC) | 10 A | |
| max. measured current value (AC) | 10 A | |
| max. resistance range | 50 MΩ | |
| Display Digits | 50000 | |
| max. voltage measuring range (AC) | 1000 V | |
| max. voltage measuring range (DC) | 1000 V | |
| TRMS possible | Yes | |
| Capacity range | 100 mF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
