943121 | Fluke
Microfuse 10 x 35 mm, 440 mA, F, 1 kV (DC), 1 kV (AC), 20 kA breaking capacity, 943121
Order No.: 21K3321
EAN: 0095969089906
MPN:
943121
Unit Price (€ / pc.)
8.0801 € *
Available: 167 pcs.

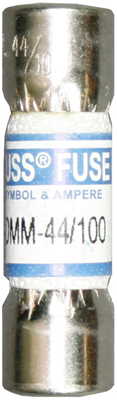

Micro fuse, 943121, FLUKE
The 943121 is a spare fuse that is intended for use with multimeters.
Features
- High voltage rating
- Material ceramic tube
- Fast-acting type
- High breaking capacity
Applications
- Pressure and vacuum
- Stray voltage
- Multimeters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Length | 35 mm | |
| Enclosure | ceramic tube | |
| Rated voltage (DC) | 1 kV | |
| Rated current | 440 mA | |
| Design | 10 x 35 mm | |
| Rated voltage (AC) | 1 kV | |
| Breaking capacity | 20 kA | |
| diameter | 10 mm | |
| Version | microfuse |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
