803293 | Fluke
Microfuse 10 x 38 mm, 11 A, F, 1 kV (DC), 1 kV (AC), 20 kA breaking capacity, 803293
Order No.: 21K3322
EAN: 0095969095761
MPN:
803293
DMM-11A
Unit Price (€ / pc.)
14.6251 € *
Standard delivery time from the manufacturer is: 1 Week

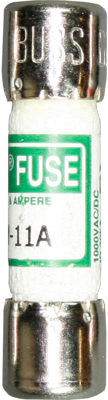

Micro fuse, 803293, FLUKE
The 803293 is a multimeter fuse that provides overcurrent protection for analog and digital multimeters. It help prevent electrical damage to a multimeter if it is mistakenly used to measure voltage while the test leads are plugged into the current socket. This medium-size fuse typically fit certain brands and models of multimeters.
Features
- High voltage rating
- Material ceramic tube
- Fast-acting type
- High breaking capacity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 1 kV | |
| Enclosure | ceramic tube | |
| Version | microfuse | |
| Rated current | 11 A | |
| diameter | 10.3 mm | |
| Tripping characteristics | F | |
| Design | 10 x 38 mm | |
| Length | 38 mm | |
| Breaking capacity | 20 kA | |
| Rated voltage (DC) | 1 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
