I800 | Fluke
TRMS AC current clamp I800, 800 A (AC), 600 V (AC), opening 54 mm, CAT III 600 V
Order No.: 27K0141
EAN: 0095969401227
MPN:
I800
2840283
Unit Price (€ / pc.)
434.35 € *
Standard delivery time from the manufacturer is: 2 Weeks
Current clamp, 2840283, Fluke

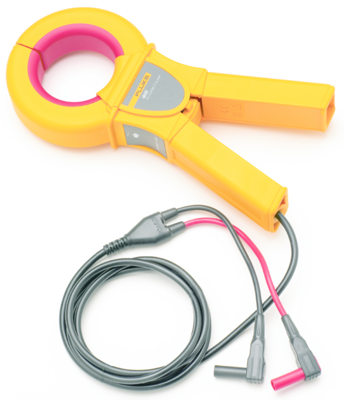

The Fluke i800 AC clamp is designed for use with multimeters, recorders and safety testers to accurately measure AC current without breaking the circuit. It extends the range for current measurement to 800 AAC. It is compatible with digital multimeters suitable for concealed 4-mm banana plugs and provides mA AC current at the output.
Features
- Measures AC current from 100 mA to 800 A rms
- Frequency range 30 Hz to 10 kHz
- CAT III 600 V
- Suitable for up to 54 mm conductor diameter
- Simple calculation thanks to conversion factor 1000:1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Measured value (frequency) | 30 Hz | |
| Surge voltage category | CAT III 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Pliers opening | 54 mm | |
| max. measured current value (AC) | 800 A | |
| TRMS possible | Yes | |
| Product type | AC current clamp | |
| max. measured value (frequency) | 10 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
