I5S | Fluke

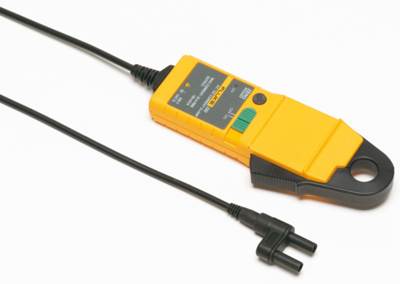

AC current clamp I5S, 5 A (AC), 600 V (AC), opening 15 mm, CAT III 600 V
Order No.: 27K0145
EAN: 0095969308656
MPN:
I5S
2508467
Unit Price (€ / pc.)
1,011.50 € *
Standard delivery time from the manufacturer is: 2 Weeks
Current clamp, 2508467, Fluke
Complement your Fluke 430 or ScopeMeter series power quality meter with this 5 A AC clamp, which provides accurate measurements at low currents on secondary circuit transformers, for example.
Features
- Low current clamp for measurements up to 5 A AC
- Compact form simplifies transport and storage; dimensions only 116 x 43 x 23 mm
- Perform accurate measurements without breaking the circuit.
- CAT III 600 V (Only for insulated conductors)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. resistance range | 1 MΩ | |
| min. Measured value (frequency) | 40 Hz | |
| Surge voltage category | CAT III 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Pliers opening | 15 mm | |
| max. measured current value (AC) | 5 A | |
| TRMS possible | No | |
| Product type | AC current clamp | |
| max. measured value (frequency) | 5 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
