I310S | Fluke
TRMS current clamp I310S, 450 A (DC), 300 A (AC), opening 19 mm, CAT III 300 V
Order No.: 27K0152
EAN: 0095969401241
MPN:
I310S
2840309
Unit Price (€ / pc.)
667.59 € *
Standard delivery time from the manufacturer is: 2 Weeks

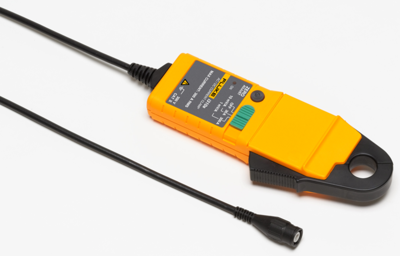

Current Probe, 2840309, Fluke
The i310s current probe is based on Hall Effect technology for use in measurement of both DC and AC current. The i310s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.
Technical specifications
Filter | Property | Value |
---|---|---|
TRMS possible | Yes | |
max. measured value (frequency) | 1 kHz | |
Pliers opening | 19 mm | |
Product type | current clamp | |
max. measured current value (AC) | 300 A | |
max. measured current value (DC) | 450 A | |
Surge voltage category | CAT III 300 V |
Download
Logistics
Property | Value |
---|---|
Country of origin | CN |
Customs tariff number | 90303100 |
Compliance
Property | Value |
---|---|
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
