I30S | Fluke

Name: AC/DC current clamp I30S, 30 A (DC), 30 A (AC), 300 V (DC), 300 V (AC), opening 19 mm, CAT III 300 V
Brand: Fluke
SKU: 27K0153
Availability: InStock

AC/DC current clamp I30S, 30 A (DC), 30 A (AC), 300 V (DC), 300 V (AC), opening 19 mm, CAT III 300 V

Order No.: 27K0153

EAN: 0095969345101

MPN:

I30S

2584935

Image may differ

Key Specification:

Product type AC/DC current clamp

TRMS possible No

Pliers opening 19 mm

Surge voltage category CAT III 300 V

Show variants: 9

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1,109.08 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

1,109.08 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Current measuring clamp, 2584935, Fluke

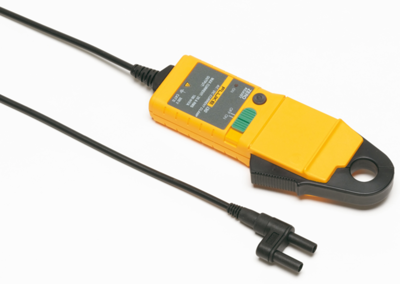

The i30s current clamp uses Hall effect technology to measure DC and AC currents. The i30s can be used in conjunction with oscilloscopes and other suitable recording devices for accurate current measurements without breaking the circuit.

Technical specifications

Filter	Property	Value
	max. measured current value (DC)	30 A
	max. resistance range	100 kΩ
	Surge voltage category	CAT III 300 V
	max. voltage measuring range (DC)	300 V
	max. voltage measuring range (AC)	300 V
	Pliers opening	19 mm
	max. measured current value (AC)	30 A
	TRMS possible	No
	Product type	AC/DC current clamp
	max. measured value (frequency)	1 kHz
