I3000S FLEX-36 | Fluke
TRMS AC current clamp I3000S FLEX-36, 3000 A (AC), 600 V (DC), 600 V (AC), CAT III 600 V
Order No.: 27K0154
EAN: 0095969345071
MPN:
I3000S FLEX-36
2584901
Unit Price (€ / pc.)
1,109.08 € *
Standard delivery time from the manufacturer is: 2 Weeks

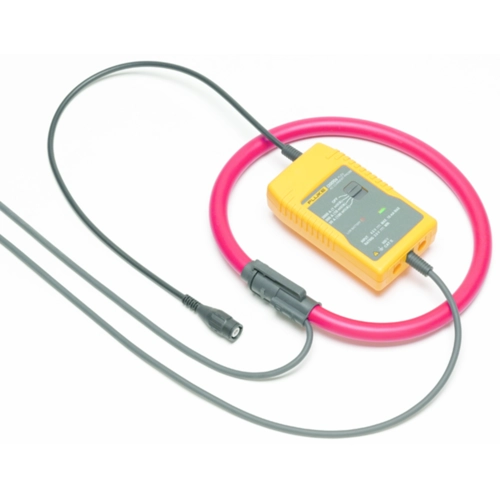

Current measuring clamp, 2584901, Fluke
The i3000s Flex is an AC current clamp operating according to the Rogowski principle. In conjunction with oscilloscopes, recorders or data loggers, it can be used to measure currents of up to 3000 A. The flexible measuring head in lightweight design allows quick and easy installation in hard-to-reach areas.
Features
- Ideal for measurements on thick and hard-to-reach wires without breaking the circuit
- Maximum conductor diameter 178 mm
- Safety specification according to EN 61010-1: CAT III 600 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (AC) | 600 V | |
| Surge voltage category | CAT III 600 V | |
| min. Measured value (frequency) | 10 Hz | |
| max. measured value (frequency) | 50 kHz | |
| max. voltage measuring range (DC) | 600 V | |
| TRMS possible | Yes | |
| max. measured current value (AC) | 3000 A | |
| Product type | AC current clamp | |
| max. resistance range | 100 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90309000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
