I3000 FLEX-4PK | Fluke
AC current clamp I3000 FLEX-4PK, 3000 A (AC), opening 178 mm, CAT III 600 V
Order No.: 27K0156
EAN: 0095969362474
MPN:
I3000 FLEX-4PK
2696367
Unit Price (€ / pc.)
2,425.2200 € *
Standard delivery time from the manufacturer is: 2 Weeks

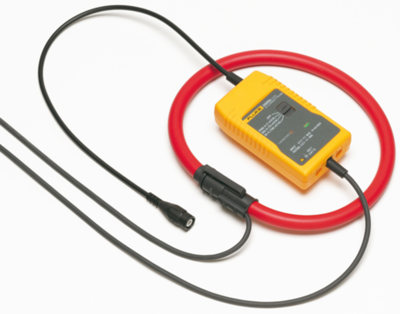

Current clamp, 2696367, Fluke
The i3000s Flex is an AC clamp that operates on the Rogowski principle. It can be used in conjunction with oscilloscopes, recorders or data loggers to measure currents of up to 3000 A. The flexible current sensor allows quick and easy use in hard-to-reach areas.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC current clamp | |
| TRMS possible | No | |
| Pliers opening | 178 mm | |
| Surge voltage category | CAT III 600 V | |
| max. measured current value (AC) | 3000 A | |
| max. resistance range | 100 kΩ | |
| min. Measured value (frequency) | 10 Hz | |
| max. measured value (frequency) | 50 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
