I30 | Fluke

Name: TRMS AC/DC current clamp I30, 30 A (DC), 20 A (AC), 300 V (DC), 300 V (AC), opening 19 mm, CAT III 300 V
Brand: Fluke
SKU: 27K0157
Availability: InStock

TRMS AC/DC current clamp I30, 30 A (DC), 20 A (AC), 300 V (DC), 300 V (AC), opening 19 mm, CAT III 300 V

Order No.: 27K0157

EAN: 0095969345095

MPN:

I30

2584920

Image may differ

Key Specification:

Product type AC/DC current clamp

TRMS possible Yes

Pliers opening 19 mm

Surge voltage category CAT III 300 V

Show variants: 9

Download Datasheet Technical specifications

Unit Price (€ / pc.)

804.44 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

804.44 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

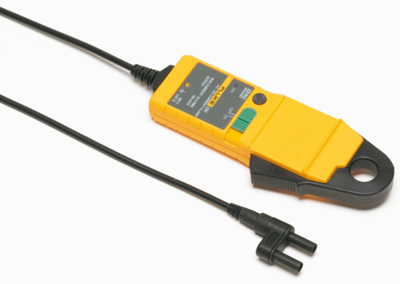

Current clamp, 2584920, Fluke

The i30 current clamp uses Hall effect technology to measure DC and AC currents. It can be used in conjunction with multimeters, recorders and other suitable recording devices for accurate current measurements without breaking the circuit.

Technical specifications

Filter	Property	Value
	max. voltage measuring range (AC)	300 V
	max. measured current value (DC)	30 A
	Surge voltage category	CAT III 300 V
	max. measured value (frequency)	20 kHz
	max. voltage measuring range (DC)	300 V
	TRMS possible	Yes
	max. measured current value (AC)	20 A
	Product type	AC/DC current clamp
	Pliers opening	19 mm
	max. resistance range	10 kΩ
