I17XX-FLEX1500/3PK | Fluke
Current clamp I17XX-FLEX1500/3PK, 1500 A (AC)
Order No.: 27K0165
EAN: 0095969786676
MPN:
I17XX-FLEX1500/3PK
4637337
Unit Price (€ / pc.)
869.89 € *
Standard delivery time from the manufacturer is: 2 Weeks
Current clamp, 4637337, Fluke

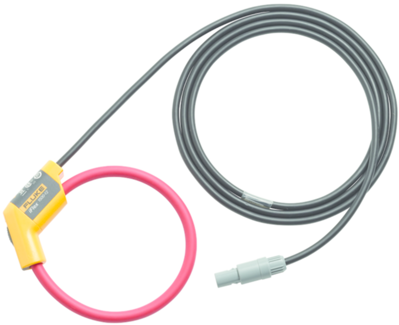

The Fluke i17XX flexible iFlex current clamps with a sensor length of 30 cm extend the measuring range of the Fluke 17XX energy or power loggers to 1500 A AC and feature maximum flexibility. The iFlex® current clamps connect directly to the logger. Current readings are displayed without error-prone scaling factors. Thanks to the 1.8 m supply cable, there is great flexibility in the distance between the measurement location and the energy logger, and the display can be read effortlessly. The Fluke i17XX iFlex® current clamps are available with sensor lengths of 30 cm, 61 cm and 91 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. measured current value (AC) | 1500 A | |
| TRMS possible | No | |
| Product type | current clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
