FLUKE I3000S | Fluke
AC current clamp FLUKE I3000S, 3000 A (AC), 1000 V (DC), 1000 V (AC), opening 64 mm, CAT III 1000 V, CAT IV 600 V
Order No.: 21K373
EAN: 0095969062022
MPN:
FLUKE I3000S
657202
Unit Price (€ / pc.)
1,455.37 € *
Standard delivery time from the manufacturer is: 2 Weeks

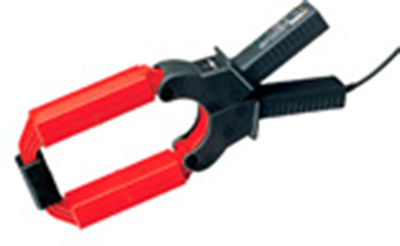

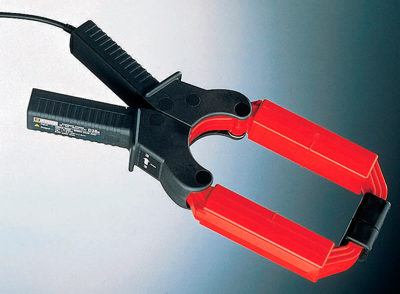

AC current clamp, 657202, Fluke
The i3000s Flex is an AC clamp operating according to the Rogowski principle. In conjunction with oscilloscopes, recorders or data loggers, it can be used to measure currents of up to 3000 A. The flexible, lightweight measuring head allows quick and easy installation in hard-to-reach areas.
Features
- Ideal for taking measurements on thick and hard-to-reach wires without breaking the circuit
- Maximum conductor diameter 178 mm
- Safety specification according to EN 61010-1: CAT III 600 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC current clamp | |
| TRMS possible | No | |
| Pliers opening | 64 mm | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. measured current value (AC) | 3000 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 1000 V | |
| max. resistance range | 40 MΩ | |
| min. Measured value (frequency) | 10 Hz | |
| max. measured value (frequency) | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
