FLUKE I-FLEX 2500-18 | Fluke

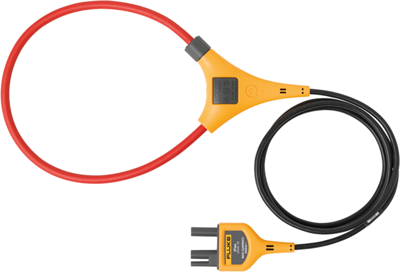

Current clamp FLUKE I-FLEX 2500-18, 2500 A (AC), CAT III 1000 V, CAT IV 600 V

Order No.: 22K7670
EAN: 4099891457471
MPN:
FLUKE I-FLEX 2500-18
3676405
FLUKE I-FLEX 2500-18 Fluke Clamp Meters
Image may differ
Unit Price (€ / pc.)
258.23 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
258.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
258.23 €

Current clamp, 3676405, Fluke

Fluke iFlex® flexible current clamps extend the measurement range of select Fluke meters to 2500 A AC while providing ultimate measurement flexibility. The iFlex® probes connect directly to the meter and display current measurements without error-prone scaling factors. The 1.8 m cable provides separation between the measurement location and the clamp meter, making the display easier to see. The large loop size and thin cross-section allow measurement of conductors with awkward dimensions and improved access to conductors in confined spaces. Available in 10-inch (25 cm) and 18-inch (45 cm) sizes.

Features

  • Extends measurement range to 2500 A AC while providing increased display flexibility, the ability to measure conductors with awkward dimensions and improved cable access
  • CAT IV 600 V, CAT III 1000 V
  • 7.5 mm coil diameter allows measurements in tight spaces
  • Ergonomic design allows easy operation with one hand
Technical specifications
Filter Property Value
TRMS possible No
max. measured value (frequency) 500 Hz
min. Measured value (frequency) 0.1 Hz
Product type current clamp
max. measured current value (AC) 2500 A
Surge voltage category CAT III 1000 V, CAT IV 600 V
Logistics
Property Value
Country of origin BG
Customs tariff number 90309000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
