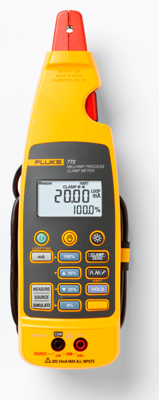

FLUKE 772 | Fluke
TRMS DC current clamp FLUKE 772, 100 mA (DC), 100 mA (AC), 30 V (DC), opening 4.5 mm, CAT II 600 V
Order No.: 22K751
EAN: 0095969475815
MPN:
FLUKE 772
3362352
Unit Price (€ / pc.)
1,611.26 € *
Standard delivery time from the manufacturer is: 2 Weeks
DC current clamp, 3362352, Fluke
Features
- Highest accuracy in its class: 0.2
- Resolution and sensitivity of 0.01 mA
- Measure 4- to 20-mA current loop signals without breaking the circuit
- Measurement of mA signals for analog inputs/outputs to PLC and control system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (DC) | 30 V | |
| min. Measured value (frequency) | 5 Hz | |
| TRMS possible | Yes | |
| max. measured value (frequency) | 500 Hz | |
| max. measured current value (DC) | 100 mA | |
| Pliers opening | 4.5 mm | |
| Surge voltage category | CAT II 600 V | |
| max. measured current value (AC) | 100 mA | |
| Product type | DC current clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
