FLUKE-377/E | Fluke

Name: TRMS clamp meter FLUKE-377/E, 999.9 A (DC), 2500 A (AC), 600 V (DC), 600 V (AC), opening 34 mm, CAT III 1000 V, CAT IV 600 V
Brand: Fluke
SKU: 27K3048
Availability: InStock

TRMS clamp meter FLUKE-377/E, 999.9 A (DC), 2500 A (AC), 600 V (DC), 600 V (AC), opening 34 mm, CAT III 1000 V, CAT IV 600 V

Order No.: 27K3048

EAN: 0195112002162

MPN:

FLUKE-377/E

5225745

Series: Fluke 370

Image may differ

Key Specification:

Product type clamp meter

TRMS possible Yes

Pliers opening 34 mm

Surge voltage category CAT III 1000 V, CAT IV 600 V

Show variants: 7

Download Datasheet Technical specifications

Unit Price (€ / pc.)

969.85 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

969.85 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

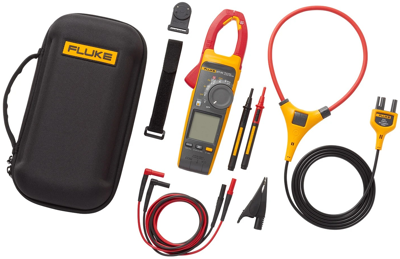

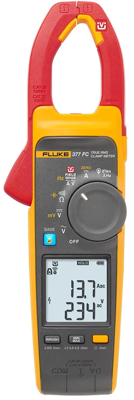

Clamp meter, FLUKE-377/E, Fluke

The Fluke true-rms clamp meter uses FieldSense technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw.

Features

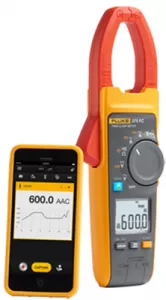

Phase rotation auto-calculated and shown on the Fluke Connect software
Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter
No more hand-written notes or complicated math

Technical specifications

Filter	Property	Value
	max. voltage measuring range (AC)	600 V
	max. resistance range	60 kΩ
	max. voltage measuring range (DC)	600 V
	Surge voltage category	CAT III 1000 V, CAT IV 600 V
	max. measured value (frequency)	500 Hz
	max. measured current value (AC)	2500 A
	Pliers opening	34 mm
	Product type	clamp meter
	max. measured current value (DC)	999.9 A
	min. Measured value (frequency)	20 Hz
	TRMS possible	Yes
