FLUKE 365 | Fluke
Fluke 365 AC/DC current clamp, 200 A, 600 V, CAT III 600 V
Active
Product by Fluke at Bürklin Elektronik

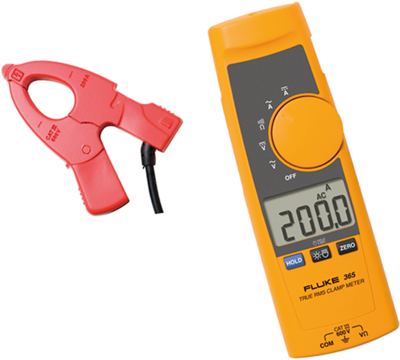

AC/DC current clamp meters, type Fluke 365.
Removable current clamp meter and integrated pocket lamp, for true RMS measurements, auto-ranging; Conductor dimensions: max. 18 mm. DC/AC current: 200 A. DC/AC voltage: 600 V. Safety: CAT III 600 V. Supplied with measuring leads, 5 x AAA batteries, cushioned carrying bag, instructions card, safety information flyer.
Type: Fluke 365, AC/DC current clamp meter, 200 A
| Version | AC/DC current clamp meter | |
| TRMS possible | Yes | |
| max. measured value (frequency) | 0.0004 MHz | |
| max. measured current value (AC) | 200 A | |
| max. measured current value (DC) | 200 A | |
| max. resistance range | 6000 Ω | |
| min. Measured value (frequency) | 0.000065 MHz | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT III 600 V | |
| Pliers opening | 18 mm |
| Country of origin | CN |
| Customs tariff number | 90303100 |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
