FLUKE-301D/EUR | Fluke
Current clamp FLUKE-301D/EUR, 600 A (DC), 600 A (AC), 600 V (DC), 600 V (AC), opening 34 mm, CAT III 300 V
Order No.: 27K3133
EAN: 0195112151556
MPN:
FLUKE-301D/EUR
6101416
Unit Price (€ / pc.)
141.61 € *
Available: 8 pcs.

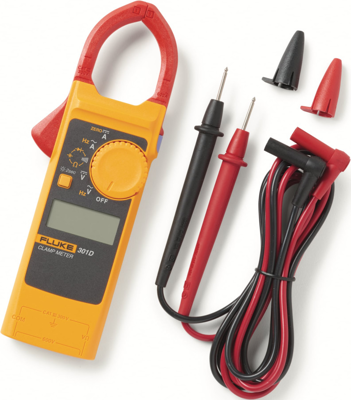

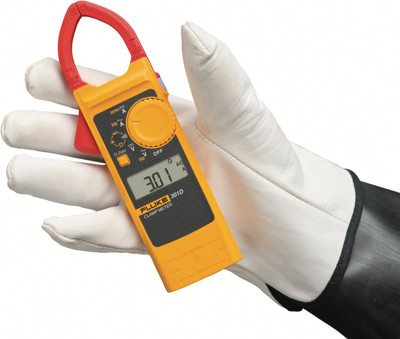

Clamp Meter, FLUKE-301D/EUR, Fluke
The Fluke 301D AC/DC Clamp Meter is designed with a lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily fit into tightly packed wires. The Fluke 301D test current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode. You can handle multiple test needs with just one tool. With the AC/DC function, it can be applied to more application scenarios requiring DC testing, such as new energy of PV and wind power, new energy vehicles, communications, data centers, etc.
Features
- The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket
- The slim and thin jaw of only 10mm can easily fit into tightly packed wires
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
- Backlight
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | current clamp | |
| Version | IP30 | |
| TRMS possible | No | |
| Pliers opening | 34 mm | |
| Surge voltage category | CAT III 300 V | |
| max. measured current value (DC) | 600 A | |
| max. measured current value (AC) | 600 A | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| max. resistance range | 60 kΩ | |
| min. Measured value (frequency) | 45 Hz | |
| max. measured value (frequency) | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
