1630-2 FC | Fluke
TRMS grounding clamp 1630-2 FC, 1000 V (AC), opening 40 mm, CAT III 1000 V, CAT IV 600 V
Unit Price (€ / pc.)
2,681.07 € *
Standard delivery time from the manufacturer is: 2 Weeks
Ground loop tongs, 4829532, Fluke
You can use the ground loop clamp to test the grounding components of equipment in hard-to-reach locations, such as indoors or fully paved areas where ground spikes cannot be driven in. Measure without disconnecting: You can measure ground loop impedance without disconnecting and reconnecting the ground electrode to the equipment.

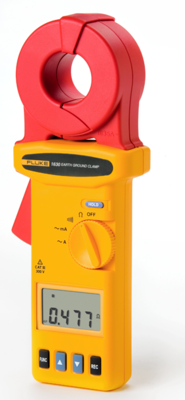

The Fluke 1630-2 FC ground loop clamp is a high-quality, rugged tool with proven Fluke quality. The heavy-duty clamp stays aligned and calibrated - even with daily use in demanding industrial environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| TRMS possible | Yes | |
| min. Measured value (frequency) | 40 Hz | |
| Product type | grounding clamp | |
| Pliers opening | 40 mm | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. resistance range | 1.5 kΩ | |
| max. measured value (frequency) | 1 kHz | |
| max. voltage measuring range (AC) | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
