FLUKE 789/IR3000FC | Fluke

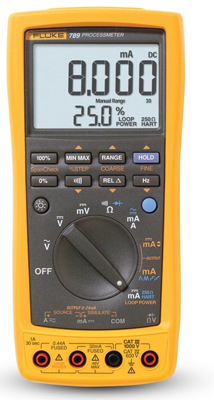

Process meter FLUKE 789/IR3000FC
Process meter FLUKE 789/IR3000FC
The ProcessMeter™ Fluke 789 is the ideal troubleshooting instrument for electricians and process engineers. It combines the functions of a current loop calibrator with those of a multimeter in measurement category CAT III 1000 V/CAT IV 600. When used with the optional IR3000FC module, the instrument is compatible with Fluke Connect. The backlight of the 789's large dual display is adjustable in two levels. The fuse and batteries are accessible from the outside for convenient replacement. And thanks to the built-in switchable 250-ohm Hart® resistor, you don't have to carry a separate resistor to calibrate Hart® instruments, either.
The 789 includes a 24 V loop power supply, so no separate power supply is needed to test transmitters in the field. You can add wireless data logging capabilities to the Fluke Connect™ app. This allows you to log and view data wirelessly on your smartphone without having to be on site.
| Product type | process meter | |
| max. operating temperature | 55 °C | |
| Voltage | 0-1000 VAC | |
| Resolution | 0.1 mV-1 V | |
| Depth | 203 mm | |
| Width | 100 mm | |
| min. operating temperature | -20 °C |
| Country of origin | US |
| Customs tariff number | 90303200 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
