FLUKE 712B | Fluke
CALIBRATOR FLUKE 712B
Order No.: 27K0441
EAN: 0095969686402
MPN:
FLUKE 712B
4387857
Unit Price (€ / pc.)
2,071.79 € *
Standard delivery time from the manufacturer is: 2 Weeks
Calibrator, 4387857, Fluke

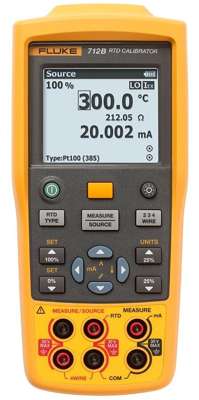

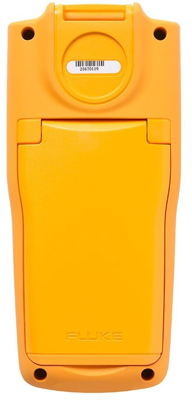

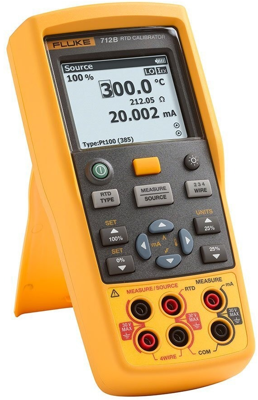

The Fluke 712B RTD Calibrator is a portable, battery-powered instrument that measures and powers a variety of RTD types and resistances. It also has an isolated channel for measuring 4-20 mA while providing a temperature signal. It offers configurable 0% and 100% source settings for fast 25% linearity testing. It also provides a linear ramp and an automatic 25% step ramp function based on the 0% and 100% settings.
Features
- Highly accurate, full-featured, easy-to-use RTD temperature calibrator with one function.
- Measures and simulates 13 different RTD types and resistors
- Measures 4 to 20 mA signals and provides a temperature signal simultaneously
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | calibrator | |
| measurement range | 0-24 mA, 0-4000 Ω | |
| Resolution | 0.001 mA, 0.1 Ω | |
| Voltage | 30 V | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 50 °C | |
| Length | 188.5 mm | |
| Width | 84 mm | |
| Depth | 52.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90262040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
