FLUKE-710 | Fluke
Loop Valve tester FLUKE-710 mA, HART-Communication
Order No.: 27K0736
EAN: 4099891458294
MPN:
FLUKE-710
4991049
Unit Price (€ / pc.)
3,886.54 € *
Available: 0 pcs.
Leadtime: On Request **
Current loop calibrator and valve tester, 4991049, Fluke

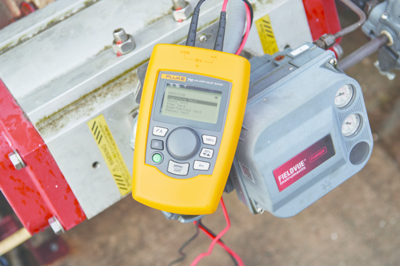

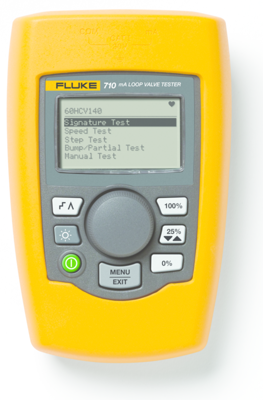

The Fluke 710 current loop calibrator and valve tester is designed to help users quickly and easily test smart HART control valves. With built-in test procedures and an intuitive user interface, the 710 makes valve testing quick and easy, with valve test results available at a glance so maintenance decisions can be made faster than ever. Based on the results of the quick valve condition check, you can determine whether the valve is OK, borderline or faulty. This allows you to quickly decide if additional maintenance action is required.
Features
- Key valve testing features include preconfigured valve signature testing, velocity testing, manual testing, and shock and partial stroke testing
- Key features of the mA current loop calibrator include mA give, mA simulate, mA measure, mA measure with simultaneous loop supply, voltage measure
- Through ValveTrack™ software, valve measurements logged and recorded in memory can be uploaded to a PC for further analysis.
Technical specifications
| Resolution | 1 mV | |
| Width | 90 mm | |
| Length | 150 mm | |
| max. operating temperature | 55 °C | |
| min. operating temperature | -10 °C | |
| Product type | Stromschleifenkalibrator | |
| Voltage | 24 V | |
| Depth | 30 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
