FLUKE-721-1630 | Fluke
Fluke pressure calibrator, FLUKE-721-1630, 4353447
Unit Price (€ / pc.)
3,765.16 € *
Standard delivery time from the manufacturer is: 2 Weeks

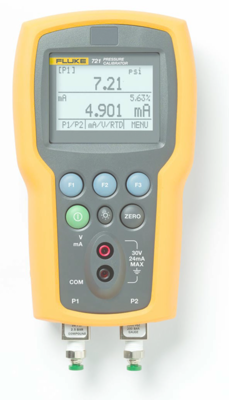

Pressure Calibrator, 4353447, Fluke
The ideal instrument for custody transfer gas applications is the Fluke 721 Precision Pressure Calibrator. Thanks to two isolated pressure sensors, you can measure static pressure and differential pressure simultaneously with just one instrument.
Features
- Ideal for pressure calibration of gas measuring instruments and meters
- Pt100 RTD input for temperature measurement (probe optional)
- Measures loop current from 4 to 20 mA
- Internal 24 V loop power supply for powering a transmitter under test
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 0.001 psi, 0.0001 bar | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -10 °C | |
| measurement range | -14 to 16 psi, -0.97 to 1.1 bar | |
| Degree of protection (IP) | IP40 | |
| Product type | pressure calibrator | |
| Version | two pressure sensors | |
| Accuracy | ±0.025 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90262080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
