FLUKE 719 100G | Fluke

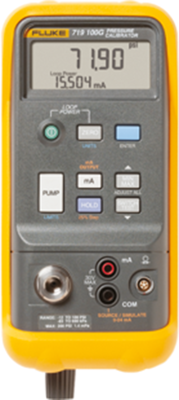

Fluke pressure calibrator, FLUKE 719 100G, 3315344
Pressure calibrators with electrical pump, type Fluke 719.
For quick, single-hand calibration and testing of pressure devices, valve control systems and current/pressure transducers, overpressure- and vacuum measurement, programmable pressure limit, simulates mA-signals for testing 4.0 to 20 mA control loops, 24 VDC loop supply; Tolerance: 0.025 %. Operating temperatures: –10 to +55 °C. Useful life of the pump: 20.000 calibration cycles. Dimensions: 210 x 87 x 60 mm. Weight: 912 g. Included in delivery: measuring leads TL75, alligator clip set AC72, snap-on connectors, tubing set, operating instructions, User's Manual (CD-ROM), 2 x 9.0 V batteries.
With pump, max. 7.0 bar, type 719 100 G.
Measuring range: –12 to 120 psi, –0.85 to +8.0 bar. Resolution: 0.01 psi, 1.0 mbar
Type: Fluke 719 100 G, pressure calibrator
| Filter | Property | Value |
|---|---|---|
| Relative Humidity Range | 35 % to 95 % | |
| Resolution | 0.01 psi, 1 mbar | |
| max. operating temperature | 55 °C | |
| min. operating temperature | -10 °C | |
| measurement range | -12 to 120 psi, -850 mbar to 8 bar | |
| Product type | pressure calibrator | |
| Version | with electric pump | |
| Accuracy | ±0.015 % |
| Property | Value |
|---|---|
| Customs tariff number | 90303900 |
| Country of origin | US |
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
