FLUKE 718 1G | Fluke

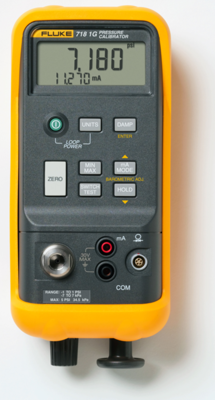

Fluke pressure calibrator, FLUKE 718 1G, 2547148
Unit Price (€ / pc.)
4,981.34 € *
Standard delivery time from the manufacturer is: On Request
Pressure calibrator, 2547148, Fluke
The Fluke 718 Series of pressure calibrators (includes 4 models) provides a complete pressure calibration solution for transmitters, meters and switches. These compact pressure calibration solutions are barely one-third the size of comparable instruments and weigh only one kilogram. The pump features a unique design that is easy to clean. This protects the pump from damage and allows it to be serviced without removal, even in the field.
Features
- Pressure and loop current measurement for calibrating and maintaining virtually any pressure device
- The integrated pump can be easily cleaned if it accidentally comes into contact with liquids. This reduces operating and maintenance costs and allows the pump to be serviced in the field.
- Percent deviation calculation for quick pass/fail testing in the field.
Technical specifications
| Version | Pressure connection with 1/8 NPT socket | |
| Accuracy | 0.015 % | |
| measurement range | -1 to 1 psi, -68.9 to 68.9 mbar | |
| Relative Humidity Range | 35 % to 95 % | |
| Product type | pressure calibrator | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 55 °C | |
| Resolution | 0.0001 psi, 0.001 mbar |
Download
Logistics
| Customs tariff number | 90262020 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
