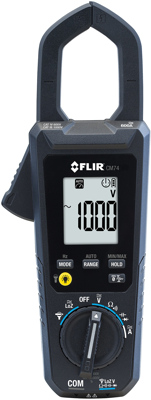

TRMS AC/DC power clamp meter CM74, 600 A (AC), 600 V (DC), 600 V (AC), opening 35 mm, CAT III 1000 V, CAT IV 600 V
AC/DC Clamp Meter, CM74, FLIR

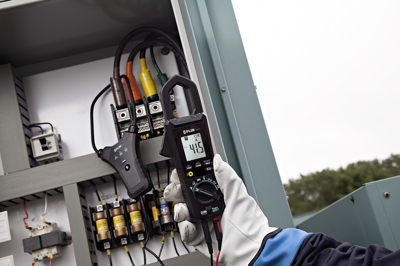

The FLIR CM74 600A AC/DC Clamp Meter gives you better access to wiring in hard-to-reach places, and provides all the measurement capabilities you need for advanced troubleshooting. Made with a narrow jaw and high-powered LED worklights, the CM74 makes it easier to take measurements in dark, crowded panels and cabinets. Its slim, light design is convenient to carry in your back pocket wherever you go. With advanced electrical features including Autoranging, True RMS Voltage and Current, LoZ, Inrush, VFD Mode, and an input for a flexible current probe accessory, CM74 has all the measurement functions you need to stay competitive and ensure accurate readings.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC/DC power clamp meter | |
| TRMS possible | Yes | |
| Pliers opening | 35 mm | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. measured current value (AC) | 600 A | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| max. resistance range | 6 kΩ | |
| max. measured value (frequency) | 60 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
