1 0267 202 012 | Flexa

Corrugated hose, inside Ø 12 mm, outside Ø 15.8 mm, BR 35 mm, PA, black, 1 0267 202 012

Order No.: 91F3025
EAN: 4025113261168
MPN:
1 0267 202 012
0267.202.012
1 0267 202 012 Flexa Protective Tubes Image 1
1 0267 202 012 Flexa Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
1.7969 € *
Available: 44 mtr.
Total Price:
1.80 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7969 €
25 mtr.
1.6779 €
50 mtr.
1.5470 €
100 mtr.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale

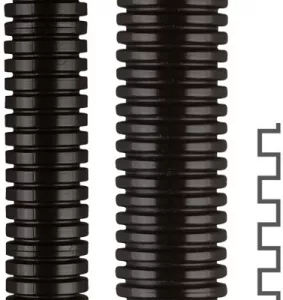

Corrugated plastic tubing, 1 0267 202 012, Flexa

Corrugated all-plastic tubing internally and externally corrugated.

Features

  • Air- and liquid-tight
  • Oil resistant up to +80 °C
  • Benzine resistant
  • Widely resistant to acids and solvents
  • Free of silicone, cadmium, halogen
  • Flame retardant
  • UV resistant

Applications

  • Machine and plant constructions
  • Automotive
  • Shipbuilding
  • Automation
  • Electrical installations
Technical specifications
Filter Property Value
Flame-retardant Yes
Degree of protection (IP) IP68/IP69K
Material PA
max. operating temperature 120 °C
min. operating temperature -25 °C
Outer diameter 15.8 mm
Colour black
Bending radius 35 mm
Inner diameter 12 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
