1 0239 303 005 | Flexa

Braided hose self-closing, NW 5 mm, black, 3-5 mm, 10239303005

Order No.: 91F2120
EAN: 4025113309686
MPN:
1 0239 303 005
0239.303.005
Series: HG-PET-SV
1 0239 303 005 Flexa Protective Tubes
Image may differ
Unit Price (€ / mtr.)
4.3435 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
217.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 mtr.
4.3435 €

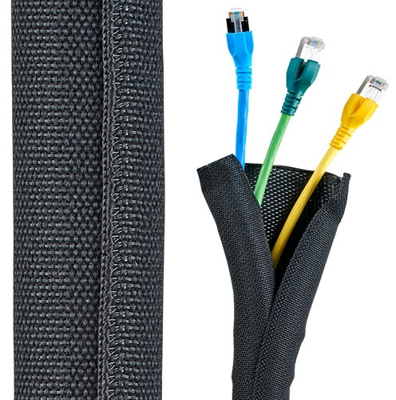

Special protective conduits, 1 0239 303 005, Flexa

Wire braiding, self-closing, consisting of round braided monofiles with double crossed looping at the different braiding angles.

Features

  • High mechanical protection
  • Excellent wear resistance
  • High-level flexibility
  • Flame-retardant
  • Halogen-free

Applications

  • Cable bundling
  • Machine and plant constructions
  • Automotive
  • Railway industry
  • Shipbuilding
  • Electrical installations
Technical specifications
max. operating temperature 150 °C
Flame-retardant Yes
Colour black
Nominal width 5 mm
Material PET
min. operating temperature -55 °C
Logistics
Customs tariff number 39173200
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
