1 0233 202 016 | Flexa

Plastic corrugated hose, inside Ø 16.5 mm, outside Ø 21.2 mm, BR 45 mm, PA, black, 1 0233 202 016

Order No.: 91F3896
EAN: 4025113105455
MPN:
1 0233 202 016
0233.202.016
Series: ROHRflex PA 6

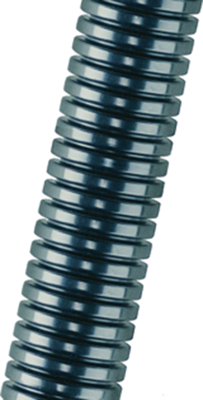

1 0233 202 016 Flexa Protective Tubes Image 1
1 0233 202 016 Flexa Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
4.7005 € *
Available: 35 mtr.
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
1 mtr.
4.7005 €
25 mtr.
4.3911 €
50 mtr.
4.0698 €
100 mtr.
3.9151 €
*incl. VAT plus shipping costs
Subject to prior sale

Corrugated all-plastic conduit made of polyamide, series ROHRflex PA 6, type Flexa 0233.201.

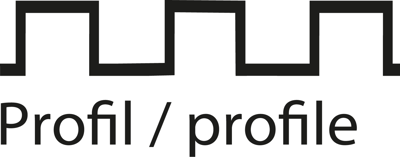

Tested to EN/IEC 61386-23, oil-proof (to +80 °C), air-tight, liquid-proof. Free of halogen, silicon and cadmium. Gasoline-resistant. flame retardant to UL 94 V-0, self-extinguishing, UV-resistant (black); Structure: corrugated inside and outside. Material: polyamide (PA). Color: black or gray. Operating temperatures: –40 to +115 °C. Certifications: VDE, UL, KEMA etc.

Technical attributes (type, inner diameter (ID), outer diameter (OD), bending radius (BR), color): 0233.202.016, ID 16.5, OD 21.2, Br 45 mm, black

Technical specifications
Filter Property Value
Degree of protection (IP) IP68
max. operating temperature 115 °C
Colour black
Inner diameter 16.5 mm
min. operating temperature -40 °C
Bending radius 45 mm
Material PA
Flame-retardant Yes
Outer diameter 21.2 mm
Logistics
Property Value
Customs tariff number 39173200
Original Packaging Reel with 50 meters
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
