1 0233 202 012 | Flexa

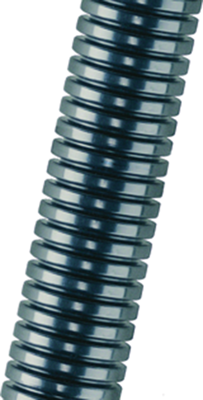

Plastic corrugated hose, inside Ø 12 mm, outside Ø 15.8 mm, BR 35 mm, PA, black, 1 0233 202 012
Unit Price (€ / mtr.)
2.9631 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.96 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9631 €
25 mtr.
2.7608 €
50 mtr.
2.5704 €
100 mtr.
2.4633 €
*incl. VAT plus shipping costs
Subject to prior sale
Corrugated all-plastic conduit made of polyamide, series ROHRflex PA 6, type Flexa 0233.201.

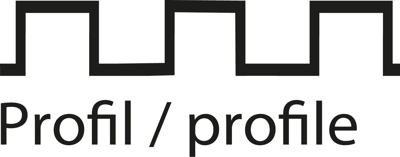

Tested to EN/IEC 61386-23, oil-proof (to +80 °C), air-tight, liquid-proof. Free of halogen, silicon and cadmium. Gasoline-resistant. flame retardant to UL 94 V-0, self-extinguishing, UV-resistant (black); Structure: corrugated inside and outside. Material: polyamide (PA). Color: black or gray. Operating temperatures: –40 to +115 °C. Certifications: VDE, UL, KEMA etc.
Technical attributes (type, inner diameter (ID), outer diameter (OD), bending radius (BR), color): 0233.202.012, ID 12, OD 15.8, Br 35 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Flame-retardant | Yes | |
| Degree of protection (IP) | IP68 | |
| Colour | black | |
| Outer diameter | 15.8 mm | |
| max. operating temperature | 115 °C | |
| min. operating temperature | -40 °C | |
| Bending radius | 35 mm | |
| Material | PA | |
| Inner diameter | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 50 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
