1 0231 002 036 | Flexa

Corrugated hose, inside Ø 36 mm, outside Ø 42.5 mm, BR 65 mm, PP, black, 1 0231 002 036

Order No.: 91F3137
EAN: 4025113176417
MPN:
1 0231 002 036
0231.002.036
Series: ROHRflex PP
1 0231 002 036 Flexa Protective Tubes Image 1
1 0231 002 036 Flexa Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
6.4260 € *
Available: 15 mtr.
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
1 mtr.
6.4260 €
25 mtr.
5.9976 €
50 mtr.
5.5692 €
100 mtr.
5.3550 €
*incl. VAT plus shipping costs
Subject to prior sale

Corrugated tubing, 1 0231 002 036, FLEXA

Protective all-plastic tubing that is internally and externally corrugated with a fine profile, very flexible and used for economic applications.

Features

  • Air and liquid-tight
  • Resistant against hydrous solutions, acids and alkalis
  • Widely resistant to solvents
  • Free of silicone and cadmium
  • Very good UV-resistant
  • Flame retardant

Applications

  • Machine and plant constructions
  • Automotive
  • Shipbuilding
  • Automation
  • Electrical installations

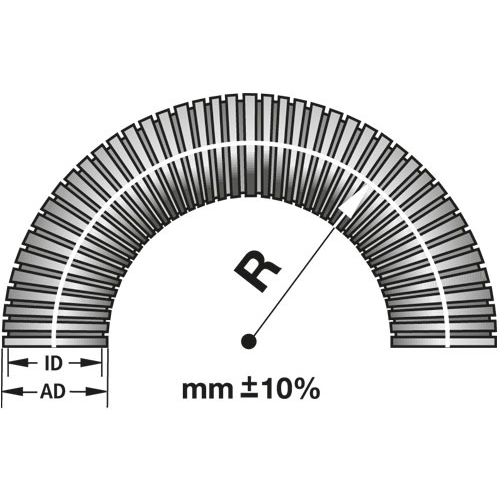

Technical specifications
Filter Property Value
Inner diameter 36 mm
max. operating temperature 150 °C
Colour black
Flame-retardant Yes
Degree of protection (IP) IP68/IP69K
min. operating temperature -40 °C
Outer diameter 42.5 mm
Material PP
Bending radius 65 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
