1 5109 010 212 | Flexa
Hose screw fitting, M12, plastic, IP66, black, (L) 51 mm, 1 5109 010 212
Unit Price (€ / pc.)
7.2947 € *
Available: 20 pcs.
Total Price:
7.29 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2947 €
10 pcs.
6.7949 €
20 pcs.
6.2951 €
100 pcs.
6.0452 €
*incl. VAT plus shipping costs
Subject to prior sale

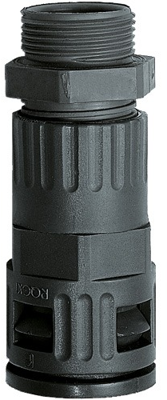

Plastic fitting, 1 5109 010 212, Flexa
Plastic fitting, quick-type, straight, metric outer thread, integrated snap-in sleeve, strain relief and conically sealed.
Features
- Resistant against oil and benzine
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- Optimal held and sealing of cables at the same time
Applications
- Machine and plant constructions
- Automotive
- Automation
- Electrical installations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 120 °C | |
| Length | 51 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Material | plastic | |
| Thread size | M12 | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
