1 5020 049 211 | Flexa

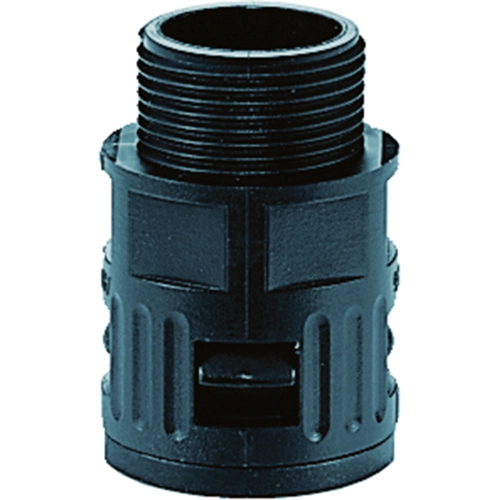

Straight hose screw fitting, PG11, 15.8 mm, PA, IP66, black, (L) 37 mm, 1 5020 049 211
Unit Price (€ / pc.)
2.5228 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
25 pcs.
2.4276 €
50 pcs.
2.3443 €
100 pcs.
2.2610 €
*incl. VAT plus shipping costs
Subject to prior sale

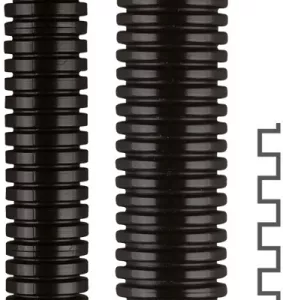

Corresponding plastic quick-lock conduit fittings series RQG1-P
With outer thread and faces for hexagonal wrench. Connecting thread: Pg to DIN 40430. Efficient mounting through one-piece screwed gland with push-in lock. Simple removal by sliding back the locking sleeve. Conical seal. Resistant against oil and gasoline. Free of halogen, silicon and cadmium.
Type: 5020.049.211
Connecting thread: Pg 11
Conduit outer diameter: 15,8 mm

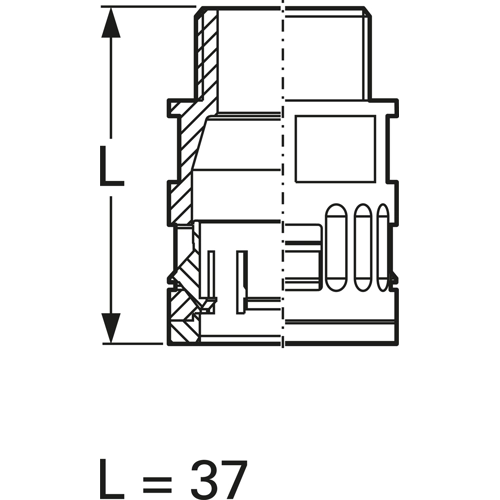

Dimension L: 37 mm
Material: polyamide (PA)
Seal: TPE
Colour: black
Degree of protection: IP 66
Operating temperatures: - 40 bis +115 °C
Technical specifications
| Thread size | PG11 | |
| Nominal width | 15.8 mm | |
| Material | PA | |
| Colour | black | |
| Length | 37 mm | |
| Degree of protection (IP) | IP66 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 115 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
