1 5030 028 221 | Flexa

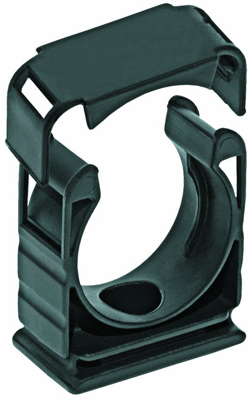

Tubing holders, (W x H) 34.7 x 39.4 mm, head Ø 28.5 mm, PA, black, for hose mounting, 1 5030 028 221
Unit Price (€ / pc.)
2.1420 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1420 €
25 pcs.
2.0587 €
50 pcs.
1.9873 €
100 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding conduit clamps with cover, series RQHG, type 5030.
Through-hole for screw mounting. With fin fixation for strain relief. In-line arrangement of different sizes. Suitable for use with C-profile rails; Material: reinforced polyamide (PA). Operating temperatures: –30 to +100 °C.

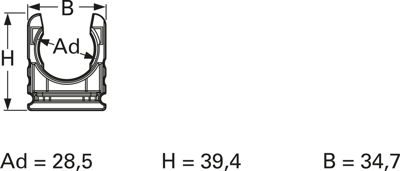

Technical attributes (type, conduit ou): 5030.028.221, OD 28.5, H 39.4, B 34.7 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | tubing holders | |
| Suitable for | hose mounting | |
| Width | 34.7 mm | |
| Height | 39.4 mm | |
| Head Diameter | 28.5 mm | |
| Colour | black | |
| Material | PA | |
| min. operating temperature | -30 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
