1 5030 028 216 | Flexa

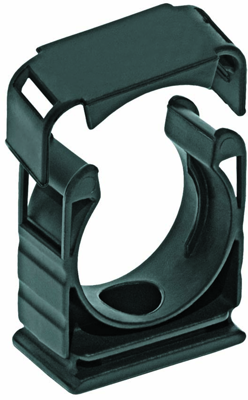

Tubing holders, (W x H) 26.5 x 33 mm, head Ø 21.2 mm, PA, black, for hose mounting, 1 5030 028 216
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
25 pcs.
1.3923 €
50 pcs.
1.3447 €
100 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding conduit clamps with cover, series RQHG, type 5030.
Through-hole for screw mounting. With fin fixation for strain relief. In-line arrangement of different sizes. Suitable for use with C-profile rails; Material: reinforced polyamide (PA). Operating temperatures: –30 to +100 °C.

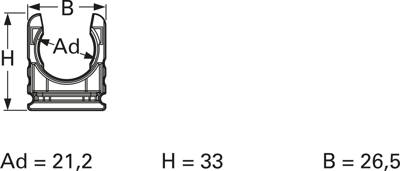

Technical attributes (type, conduit ou): 5030.028.216, OD 21.2, H 33, B 26.5 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head Diameter | 21.2 mm | |
| max. operating temperature | 100 °C | |
| Colour | black | |
| Material | PA | |
| min. operating temperature | -30 °C | |
| Product type | tubing holders | |
| Width | 26.5 mm | |
| Suitable for | hose mounting | |
| Height | 33 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
